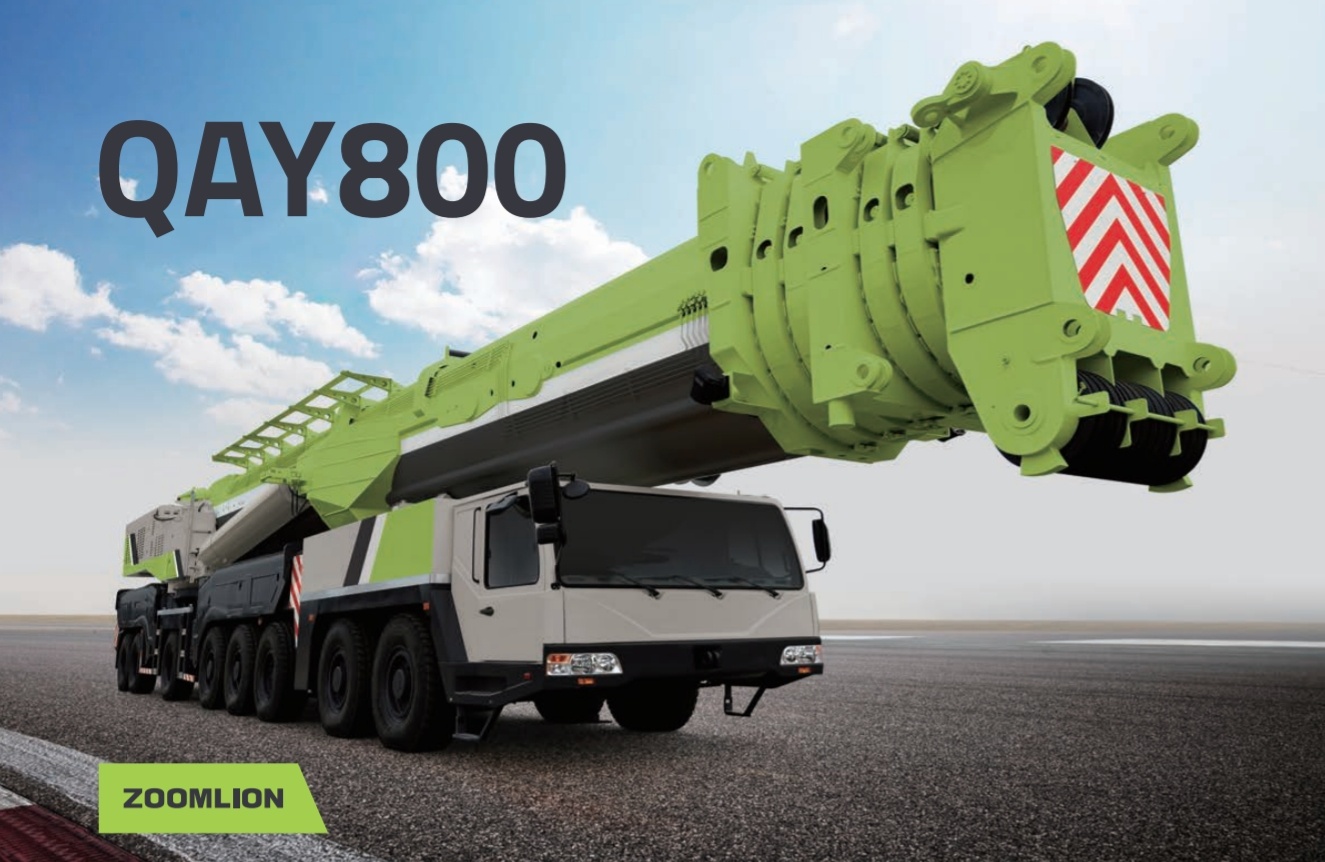

줌라이언_QAY 800

Max. rated lifting capacity

kg

800000

Max. hoist rope speed (Main winch)

m/min

125

Boom derricking up time

s

160

Boom extending time

min

20

slewing speed

r/min

0.65

Max. driving speed

km/h

72

Max. gradeability

%

35

Approach angle

°

16.6

Leave angle

°

16

Brake distance

m

10 (AT 30km/h)

Min. turning diameter

m

29

Min. ground clearance

mm

306

Deadweight in driving condition

kg

92000

Axles load

kg

12000

Overall dimensions (L×W×H)

mm

19980×3000×4000

Outrigger spread (L)

m

13

 Outrigger spread (W)

m

13

Main boom length

mm

17.8 ~ 91.3

Boom angle

°

-0.6 ~ 83

 Fix Jib length

m

10 ~ 52

 Fix Jib offset

°

0,  15, 30

Luffing jib length

m

15 ~ 69

Luffing system



yes

"Y"-guying system



yes
