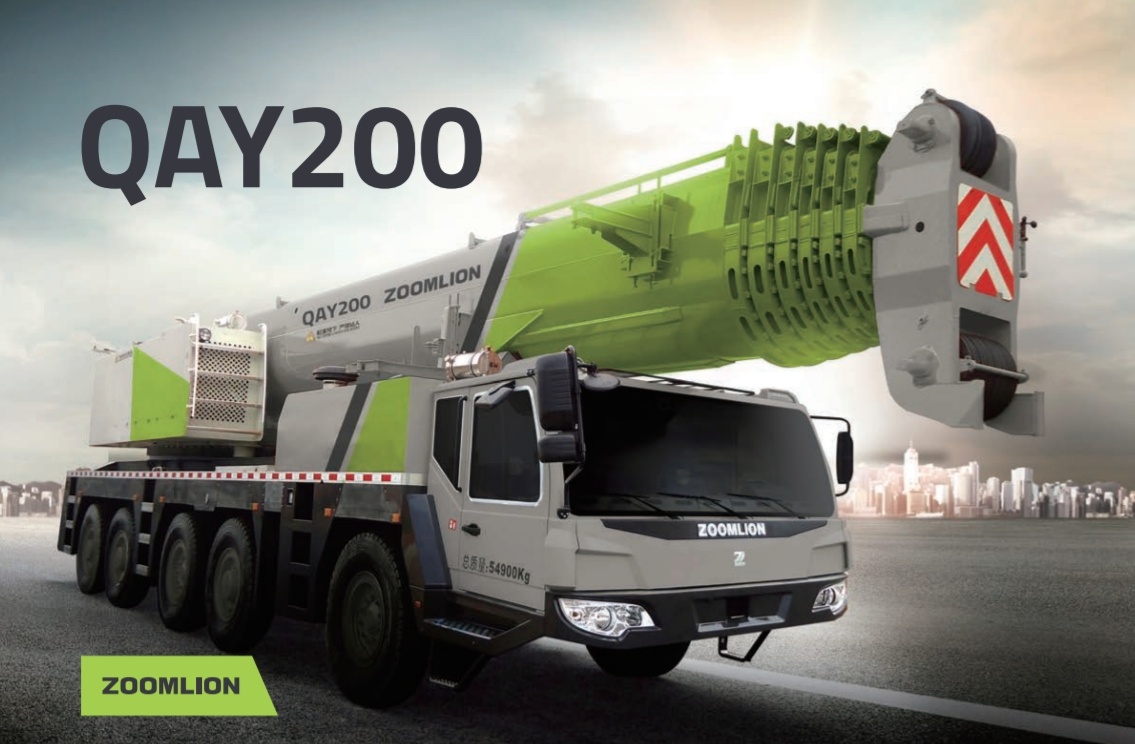

줌라이언_QAY 200

줌라이언의 QAY200은 2018년 부터 적용되는 배출가스 검사기준이 Tier-4로 변경됨에 따라 Tier-4엔진 장착과 그에따른 미션의 적합도 등 우리나라 기준에 맞도록 개발 진행중입니다.

​





Max. rated lifting capacity

kg

200000

Max. lift height of main boom

m

72

Max. lift height of jib
(The parameters do not include deflection of main boom and jib. The value in the brackets is the value with extensions installed)

m

95/(103)

Max. hoist rope speed (Main winch)

m/min

120

Max. hoist rope speed (Auxiliary winch)

m/min

70

Boom derricking up time

s

97

Boom extending time

min

12

slewing speed

r/min

0 ~ 1.4

Max. driving speed

km/h

75

Max. gradeability

%

40

Min. turning diameter

m

20

Min. ground clearance

mm

305

Fuel consumption per hundred kilometers

L

78

Deadweight in driving condition

kg

60000

Axles load

kg

12000

Overall dimensions (L×W×H)

mm

16000×3000×4000

Outrigger spread (L)

m

8.9

 Outrigger spread (W)

m

8.3

Main boom length

mm

13.4 ~ 72

Boom angle

°

-0.5 ~ 83

Jib length

m

12, 20, 28

Jib + extension length (Optional)

m

36

Offset

°

0,  15, 30





Table of main parts (QAY200)

Ser.
 No.

Description

Manufacturer

1

Engine, superstructure

Benz (Germany)

2

Engine, chassis

Benz (Germany)

3

Transmission

ZF Friedrichshafen AG (Germany)

4

Transfer case

KESSLER Group (Germany)

5

Axles

KESSLER Group (Germany)

6

Tires

Michelin Group, Bridgestone Group (Japan),
Guizhou Tire Co., Ltd. (Advance tire),
Double Coin Holdings LTD. (Shanghai),
Aeolus Tire Co., LTD. (He’nan)

7

Hydraulic pump, superstructure

Linde (Germany), Rexroth (Germany)

8

Hydraulic pump, chassis

METARIS INC (Italy) + Bucher
 Hydraulics Remscheid GMBH (Germany)

9

Horizontal cylinder

Hunan Teli Hydraulic Co., Ltd.

10

Vertical cylinder

Hunan Teli Hydraulic Co., Ltd.

11

Slewing bearing

Rothe Erde (Xuzhou)

12

Slewing gear

Bosch Rexroth, Xuzhou Keyuan Hydraulic Co., Ltd.

13

Slewing motor

Rexroth (Germany),
 Shanghai Electric Hydraulic and
Pneumatic Co., Ltd.

14

Main winch

Bosch Rexroth

15

Auxiliary winch

Bosch Rexroth

16

Main winch motor

Linde (Germany), Rexroth (Germany)

17

Auxiliary winch motor

Linde (Germany), Rexroth (Germany)

18

Telescoping cylinder

Chengdu Chenggang Hydraulic
 Equipment Manufacturing Limited Company

19

Derricking cylinder

Hunan Teli Hydraulic Co., Ltd.

20

Hoist balancing valve

Linde (Germany), Rexroth (Germany)

21

Derricking balancing valve

Bucher Hydraulics Remscheid GMBH (Germany)

22

Telescoping balancing valve

Bucher Hydraulics Remscheid GMBH (Germany)

23

Multiple unit valve, superstructure

Bucher Hydraulics Remscheid GMBH (Germany),
Rexroth (Germany)

24

Load moment limiter

Hirschmann (Germany)

25

Pilot-operated proportional joysticks

UK P+G (Shanghai PalFin as its agency)

26

Bite-type fitting connector

Faster (Italy), Zhejiang Xiongpeng Machinery Co., Ltd.

27

Hoist rope

Verope (Korea)

28

Plate material of boom

Imported

The equipment fitted in the crane is subject to changes due to design improvements or
other reasons. Therefore, the above table is for reference only.
